How to setup SSO with OneLogin

About this article

This article describes how an organization can set up SSO with OneLogin utilizing the SAML2 protocol.

• Step-by-Step Installation

Prerequisites

Step-by-Step Installation

1. In OneLogin, go to Apps and Add Apps




2. Search for SAML
3. Choose SAML Test Connector (Advanced)




4. Name it Templafy (and add an icon if you want)
5. Click Save




6. Go to Configuration, enter the SAML2 settings below according to the cluster of your Templafy tenant, and click Save.


   Metadata URL	West Europe (Production 0): https://templafyprod0.auth.templafy.com/auth/saml2/auth-services West Europe (Production 1): https://templafyprod1.auth.templafy.com/auth/saml2/auth-services East US: https://templafyprod2.auth.templafy.com/auth/saml2/auth-services East Australia: https://templafyprod3.auth.templafy.com/auth/saml2/auth-services Canada: https://templafyprod4.auth.templafy.com/auth/saml2/auth-services West Europe (Production 5): https://templafyprod5.auth.templafy.com/auth/saml2/auth-services
   Audience/ Recipient	https://auth.templafy.com/auth/saml2/auth-services
   ACS (Consumer) URL Validator  / ACS (Consumer) URL	West Europe (Production 0): https://templafyprod0.auth.templafy.com/auth/saml2/auth-services/Acs West Europe (Production 1): https://templafyprod1.auth.templafy.com/auth/saml2/auth-services/Acs East US: https://templafyprod2.auth.templafy.com/auth/saml2/auth-services/Acs East Australia: https://templafyprod3.auth.templafy.com/auth/saml2/auth-services/Acs Canada: https://templafyprod4.auth.templafy.com/auth/saml2/auth-services/Acs West Europe (Production 5): https://templafyprod5.auth.templafy.com/auth/saml2/auth-services/Acs
   Login URL	https://CLIENTSUBDOMAIN.hive.templafy.com or https://CLIENTSUBDOMAIN.templafy.com
   Hash function to use for digital signing at IdP	SHA-256
   User Identifier	mail




7. Click Parameters, then click on the plus icon

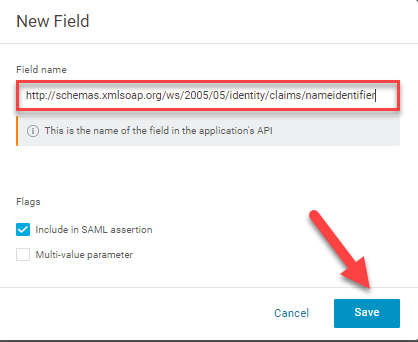

8. In field name, enter http://schemas.xmlsoap.org/ws/2005/05/identity/claims/nameidentifier
9. Check Include in SAML assertion and click Save



10. Click on the newly created parameter
11. Set the Value to Email, and click Save




12. Click SSO
13. Change SAML Signature Algorithm to SHA-256, and click Save
14. Copy the Issuer URL and send it to your Templafy Implementation Partner along with the metadata.xml file
