This article provides additional information on how the image insertion into PowerPoint placeholders and selected images behave based on the application that is used.
Inserting images into selected image (replacing the image)

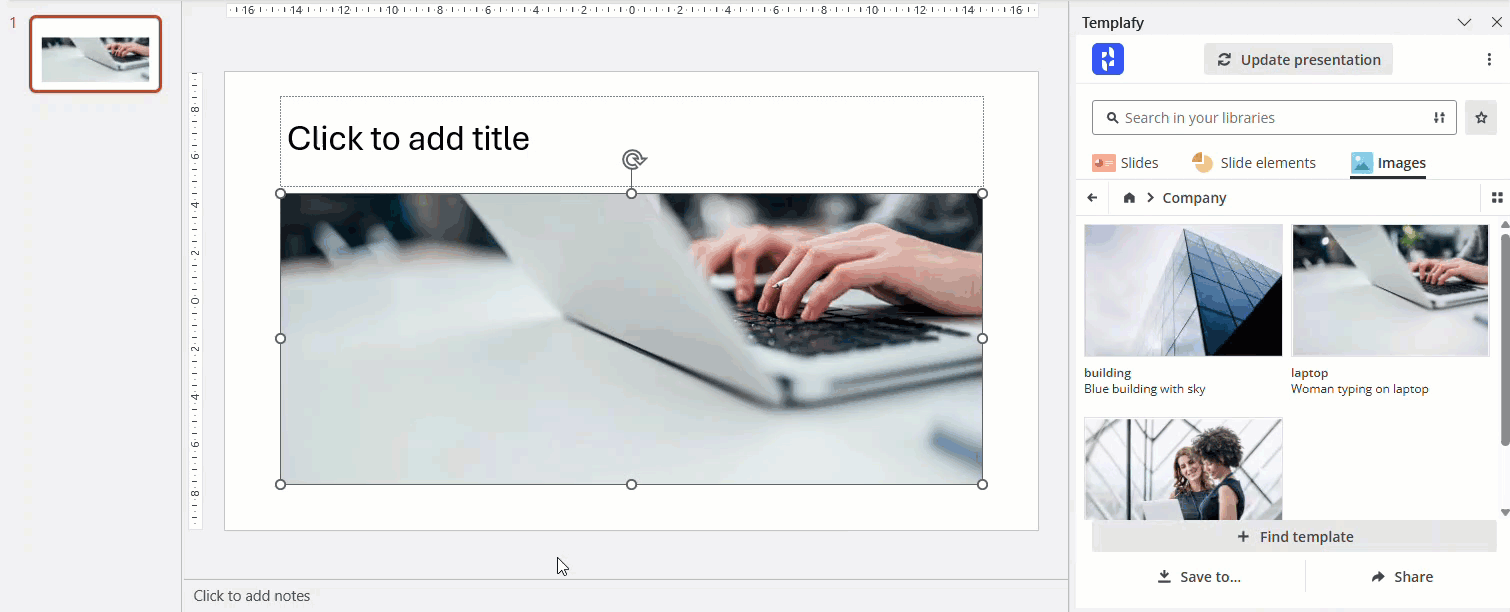

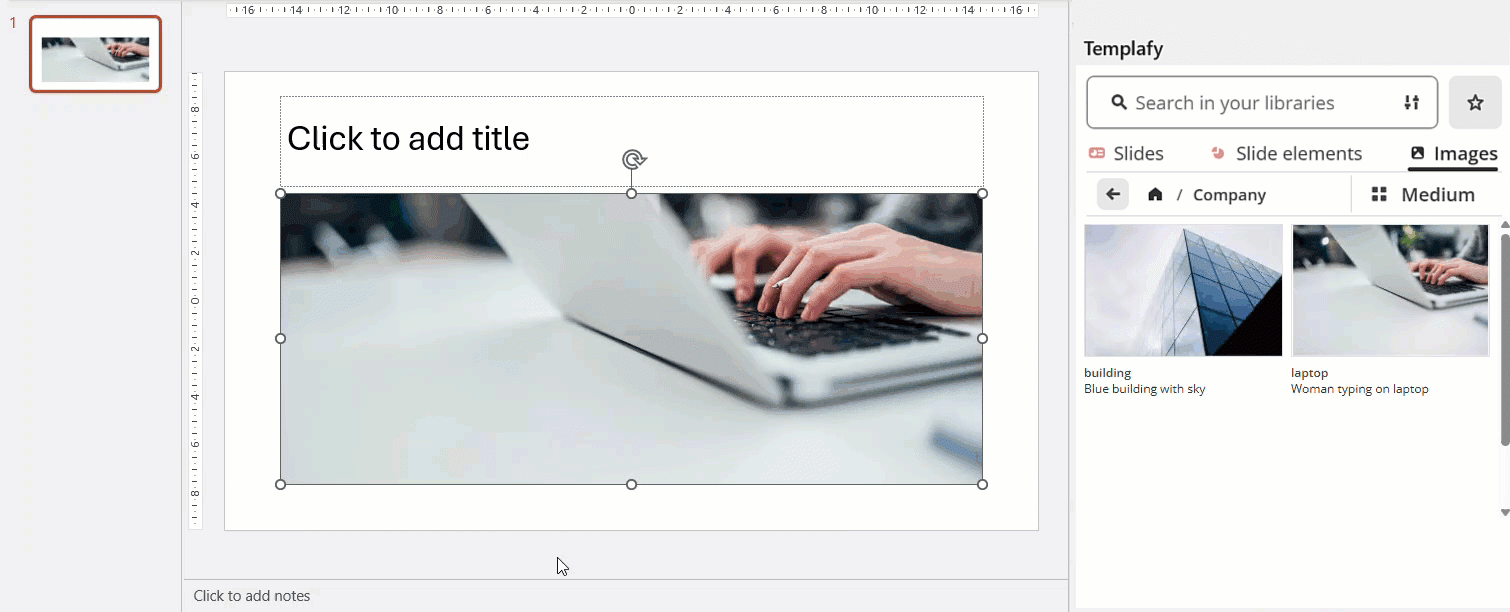

The best experience you get is when you replace an image in Office for Windows with the Library VSTO Add-in installed: the selected image is replaced by the image from the Templafy Library.

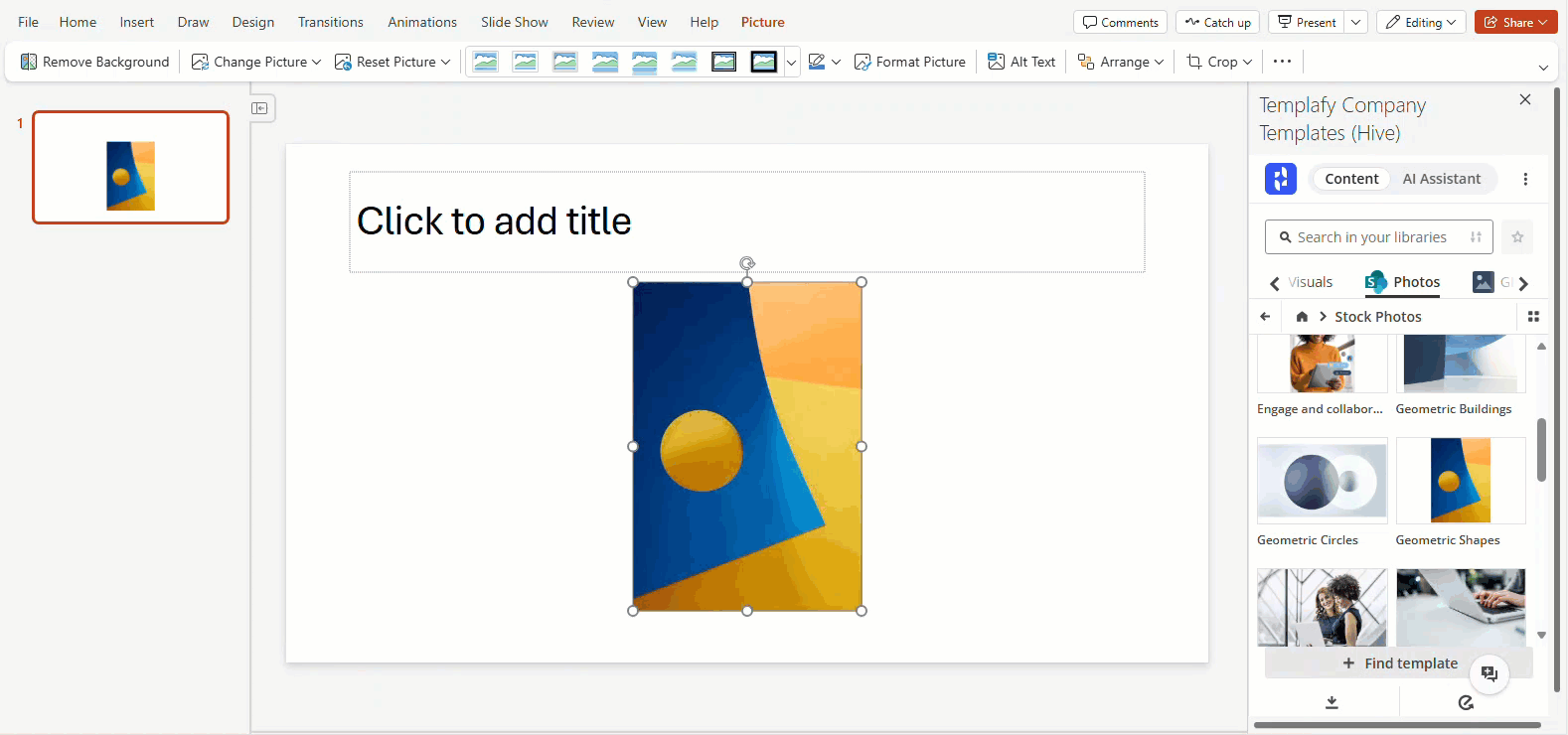

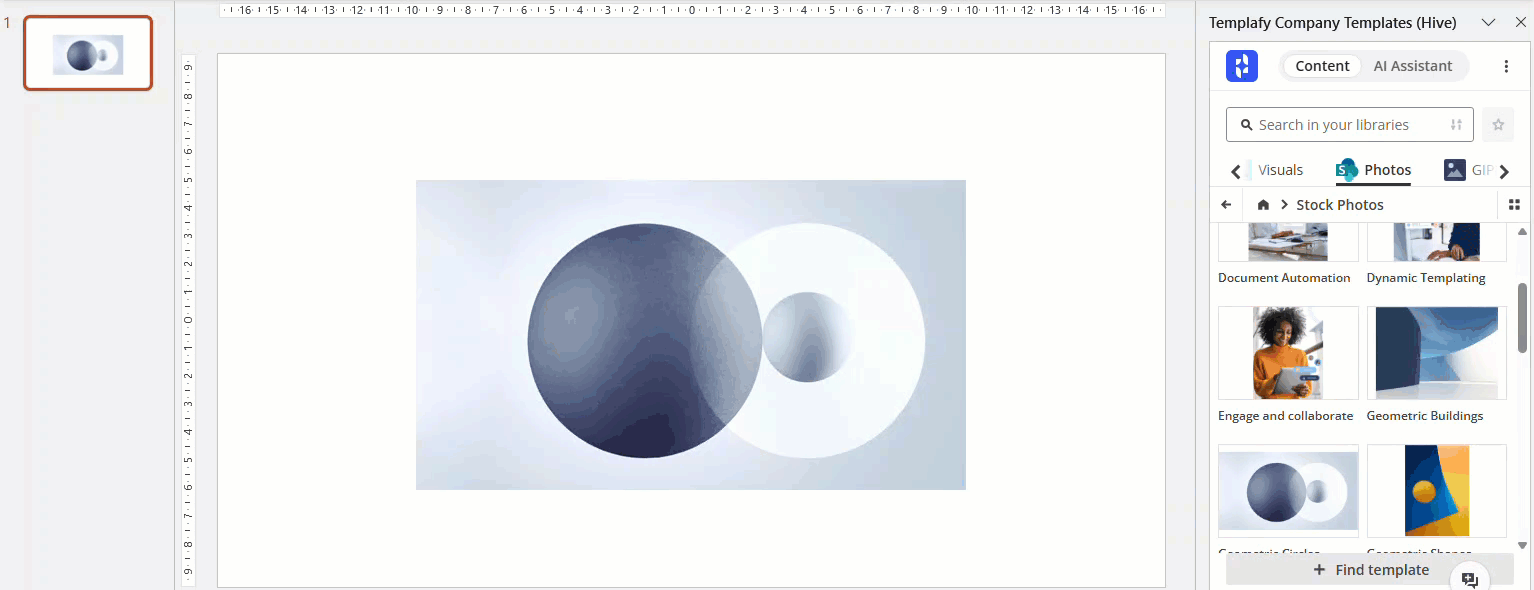

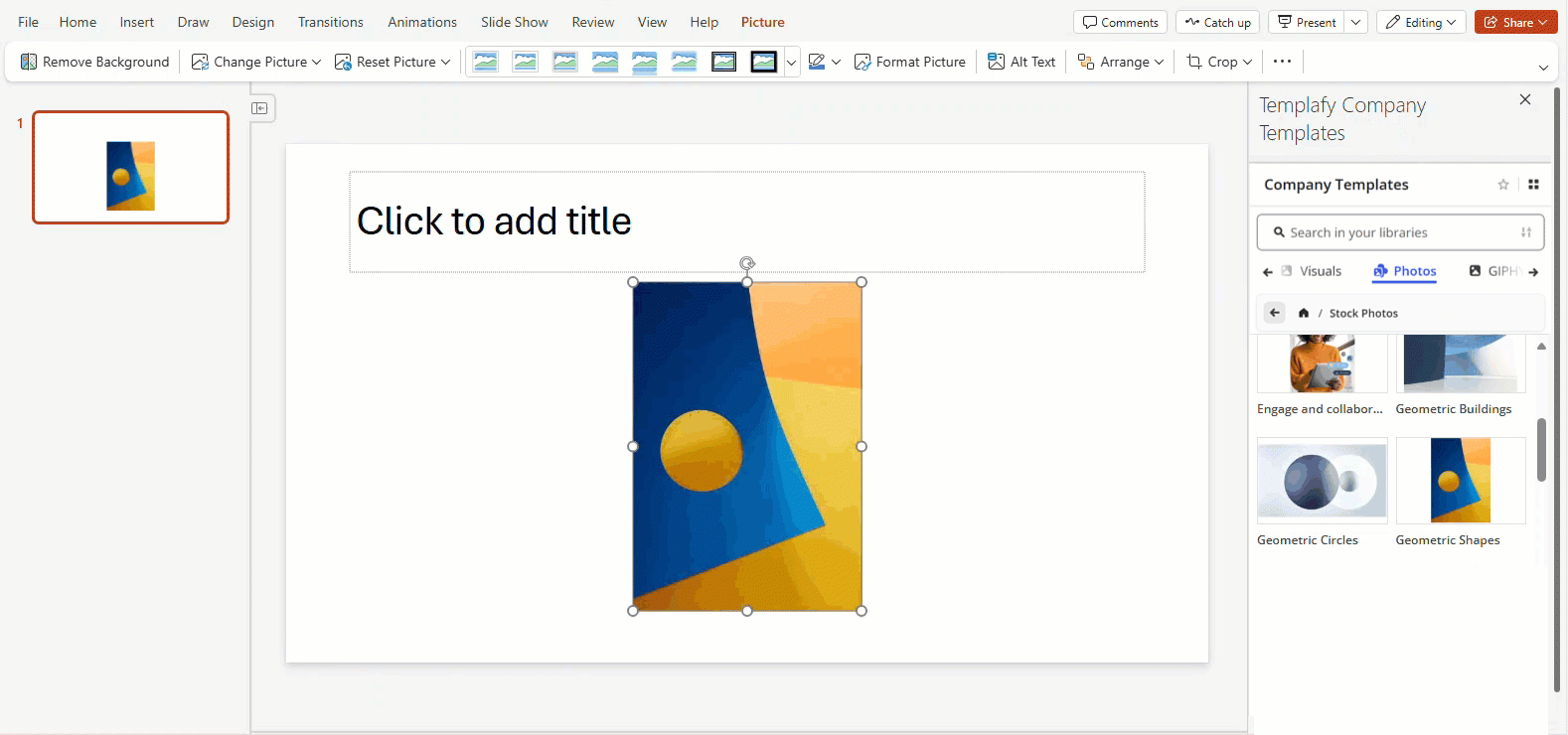

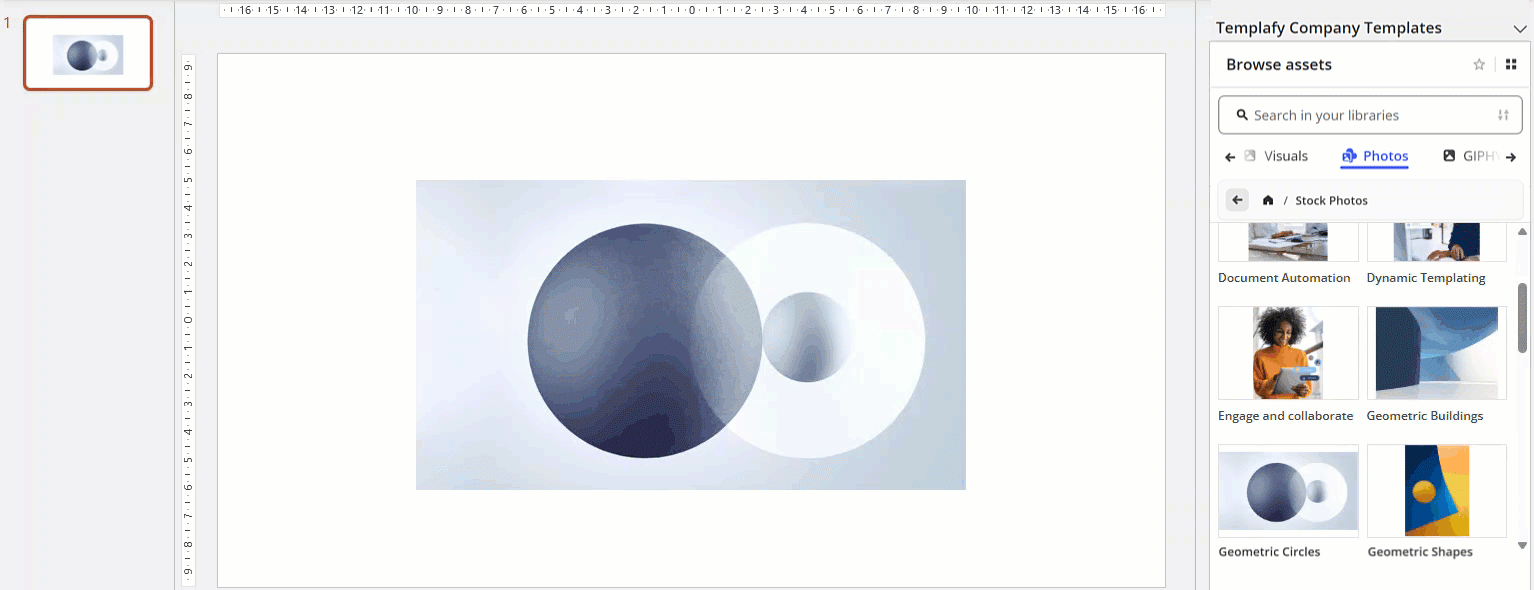

When you insert an image from the Web Add-in, then the selected image in your presentation does not get replaced, but the image is inserted as new image on top of your selected image. In that case, remove the current image first, so the placeholder appears. Select the placeholder and insert an image from Templafy Library (as shown in the animation in the third tab).
Inserting images into placeholders
The result of inserting an image from Templafy Library into a slide depends on the object (placeholder) that is selected, the Office version (Windows, Mac, Online) and the Add-in (VSTO or Web).
| Placeholder type | Office for Windows (Library VSTO Add-in) |
Office for Mac (Library Web Add-in) |
Office Online (Library Web Add-in) |
Office for Windows (Library Web Add-in) |
|---|---|---|---|---|
| No placeholders | In center of the slide | Top left of the slide | Top left of the slide | Top left of the slide |
The slide contains one or more placeholders, but the none of the placeholders are selected. The image is inserted as follows:
| Placeholder type | Office for Windows (Library VSTO Add-in) |
Office for Mac (Library Web Add-in) |
Office Online (Library Web Add-in) |
Office for Windows (Library Web Add-in) |
|---|---|---|---|---|
| Text | In center of the slide | Top left of the slide | Top left of the slide | In center of the slide |
| Table | In center of the slide | Top left of the slide | Top left of the slide | In center of the slide |
| SmartArt | In center of the slide | Top left of the slide | Top left of the slide | In center of the slide |
| Media | In center of the slide | Top left of the slide | Top left of the slide | In center of the slide |
| Online image | In center of the slide | Into the placeholder | Into the placeholder | Into the placeholder |
| Two online images | In center of the slide | Into the first available placeholder | Into the first available placeholder | Into the first available placeholder |
| Content | In center of the slide | Into the placeholder | Into the placeholder | Into the placeholder |
| Two content | In center of the slide | Into the first available placeholder | Into the first available placeholder | Into the first available placeholder |
| Picture | In center of the slide | Into the placeholder | Into the placeholder | Into the placeholder |
| Two pictures | In center of the slide | Into the first available placeholder | Into the first available placeholder | Into the first available placeholder |
| Text and content | In center of the slide | Into the content placeholder | Into the content placeholder | Into the content placeholder |
The slide contains one or more placeholders, and the first placeholder is selected. The image is inserted as follows:
| Placeholder type | Office for Windows (Library VSTO Add-in) |
Office for Mac (Library Web Add-in) |
Office Online (Library Web Add-in) |
Office for Windows (Library Web Add-in) |
|---|---|---|---|---|
| Text | Into the placeholder | Top left of the slide | Top left of the slide | In center of the slide |
| Table | Into the placeholder | Top left of the slide | Top left of the slide | In center of the slide |
| SmartArt | Into the placeholder | Top left of the slide | Top left of the slide | In center of the slide |
| Media | Into the placeholder | Top left of the slide | Top left of the slide | In center of the slide |
| Online image | Into the placeholder | Into the placeholder | Into the placeholder | Into the placeholder |
| Two online images | Into the first placeholder | Into the first placeholder | Into the first placeholder | Into the first placeholder |
| Content | Into the placeholder | Into the placeholder | Into the placeholder | Into the placeholder |
| Two content | Into the first placeholder | Into the first placeholder | Into the first placeholder | Into the first placeholder |
| Picture | Into the placeholder | Into the placeholder | Into the placeholder | Into the placeholder |
| Two pictures | Into the first placeholder | Into the first placeholder | Into the first placeholder | Into the first placeholder |
| Text and content | Into the first placeholder | Into the content placeholder | Into the content placeholder | Into the content placeholder |
The slide contains one or more placeholders, and the second placeholder is selected. The image is inserted as follows:
| Placeholder type | Office for Windows (Library VSTO Add-in) |
Office for Mac (Library Web Add-in) |
Office Online (Library Web Add-in) |
Office for Windows (Library Web Add-in) |
|---|---|---|---|---|
| Two online images | Into the second placeholder | Into the second placeholder | Into the first placeholder | Into the second placeholder |
| Two content | Into the second placeholder | Into the second placeholder | Into the first placeholder | Into the second placeholder |
| Two pictures | Into the second placeholder | Into the second placeholder | Into the first placeholder | Into the second placeholder |
| Text and content | Into the second placeholder | Into the content placeholder | Into the content placeholder | Into the content placeholder |
ImportantImages will only be inserted in crop mode in Office for Windows using the VSTO Add-in. |
